FMS131P

FMS EDF Jet 80mm Rafale PNP

Description

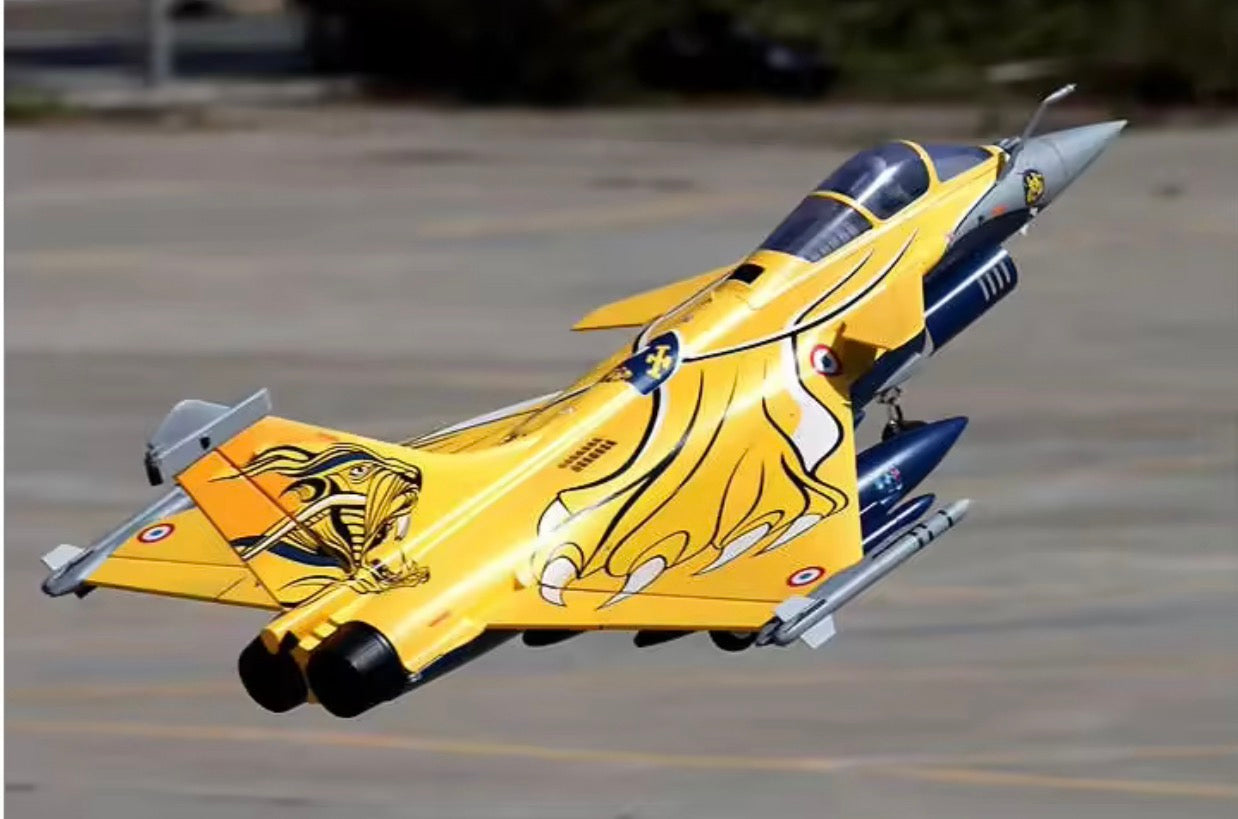

Innovative Design, 80MM Rafale RC EDF Jet

FMS 80mm Rafale features an attractive trim scheme, excellent scale details and fully functional canards- allowing the aircraft to be truly unique when compared to other 80mm EDF aircraft. Details such as the pilot, cockpit interior, panels, removable armaments, auxiliary fuel tanks, refueling probe, targeting sensor etc; dynamic features such as functional LED navigation and landing lights, CNC shock-absorbing electric retracts, functional canards and flaps etc.

Utilising screws, latches and quick connectors, experienced builders can complete the build process in as little as 5 minutes.

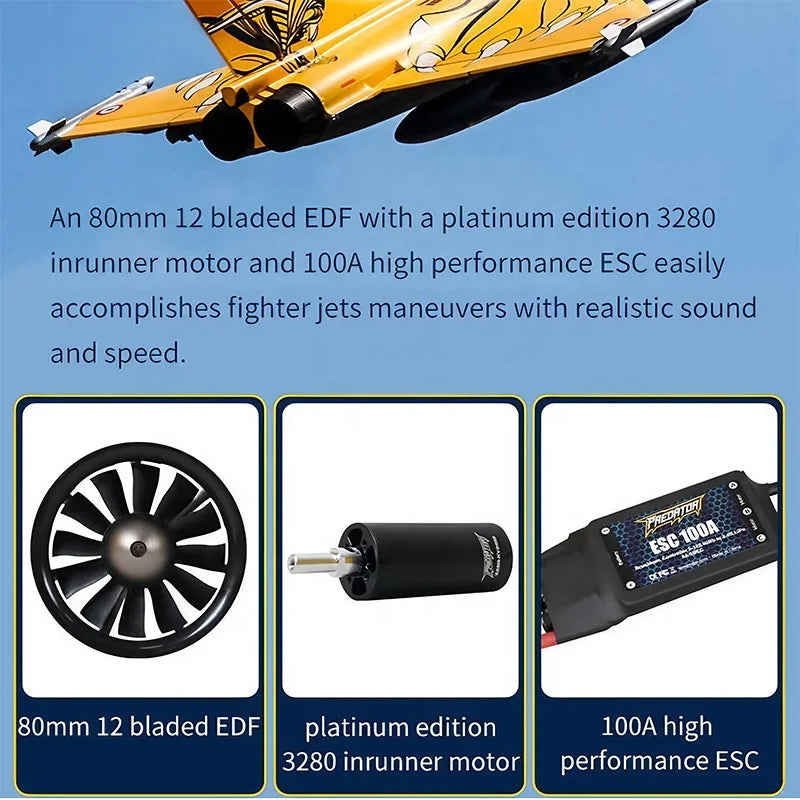

Functions such as delta-mixing, sequential landing gear bay doors, alternating flash navigation lights, nose gear landing lights, slowed flaps etc are all controlled by a central control board. An 80mm 12 bladed EDF with a platinum edition 3280 inrunner motor and 100A high performance ESC easily accomplishes fighter jets maneuvers with realistic sound and speed.

Highlights

3280-2100KV platinum edition inrunner motor with a high-performance 100A ESC

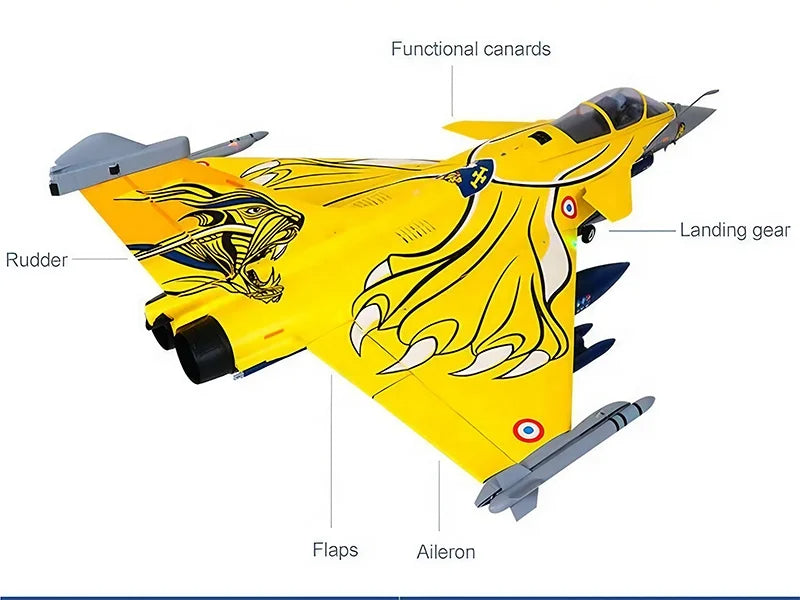

Delta wing design with full flying canards and functional flaps

CNC metal shock-absorbing landing gear

Functional navigation and landing lights

Central function controller

Functional and static details lovingly replicated

Water based vibrant trim scheme

Specification

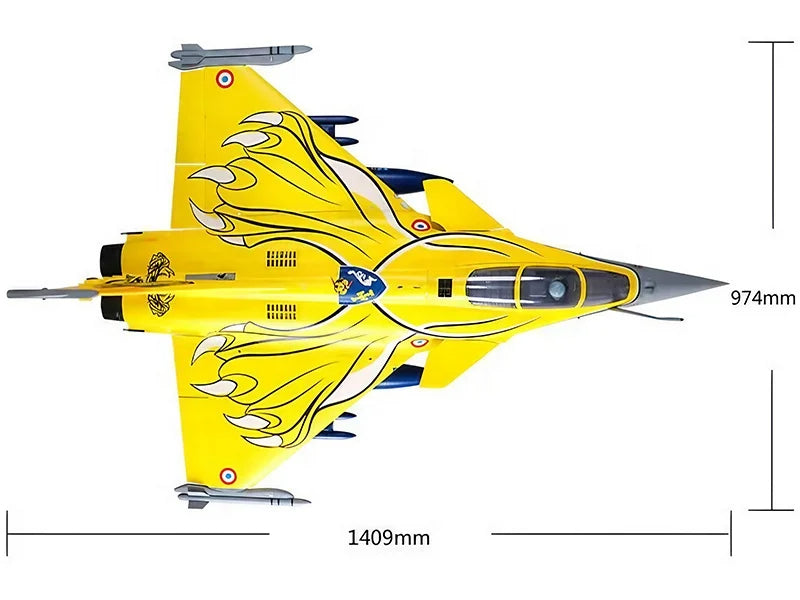

Wingspan: 974mm /38.3 in

Overall Length: 1409mm /55.5 in

Flying Weight: Around  3280g

Motor Size: 3280 KV2100

ESC: 100A

Servo: 13gX7pcs

Radio: 6CH Channel

CG (center of gravity): 110-130mm

Prop Size: 12 Fan

Recommended Battery: 22.2V4000mAh-5000mAh 45c

Aileron: Yes

Rudder: Yes

Flaps: Yes

Retracts: Yes

Approx. Flying Duration: 3minutes

Minimum Age Recommendation: 14+

Assembly Time: 5minutes

Wing Load: 85.2  g/dm²   (  0.17oz/in²)

Wing Area: 38.5 dm²    ( 596.6 sq.in)

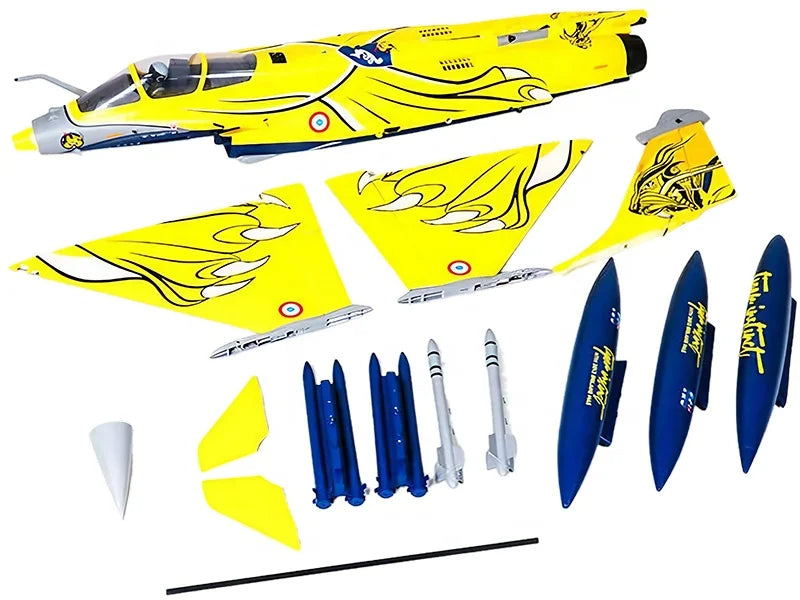

What's in Box

80mm EDF with 12 bladed fan

3280-2100KV Brushless Motor (installed)

Hobbywing 100A ESC (installed)

13g Digital All-metal Servos (installed)

CNC All-metal Landing Gear (installed)

Flashing Navigation Lights On Wings And Taxi Tights On the Bottom Of the Fuselage (installed)

Attractive Red-gray Decal

Product Manual

Need to Complete

Transmitter

6+ channel Receiver

22.2V4000mAh-5000mAh 45c (recmmanded)

Compatible Charger

Notes to buyers:

RTF airplane comes with everything necessary for flight in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.

PNP airplane comes pre-installed with ESC, motor, and servos. The Transmitter, Receiver, Battery, and Charger are NOT included.
