FMS145P

Description: EDF Jet 90mm Super Scorpion V2

In The Box

(1) 90mm Super Scorpion V2 EDF PNP

(2) 120A ESC with Reverse Thrust Function (installed)

(3) 6S (3670-KV1950 inrunner motor) or 8S (4075-KV1500 inrunner motor) options (installed)

(4) 90mm 12-blade ducted fan (installed)

(5) 9 High-precision All-metal Digital Servos (installed)

(6) Product Manual

Features

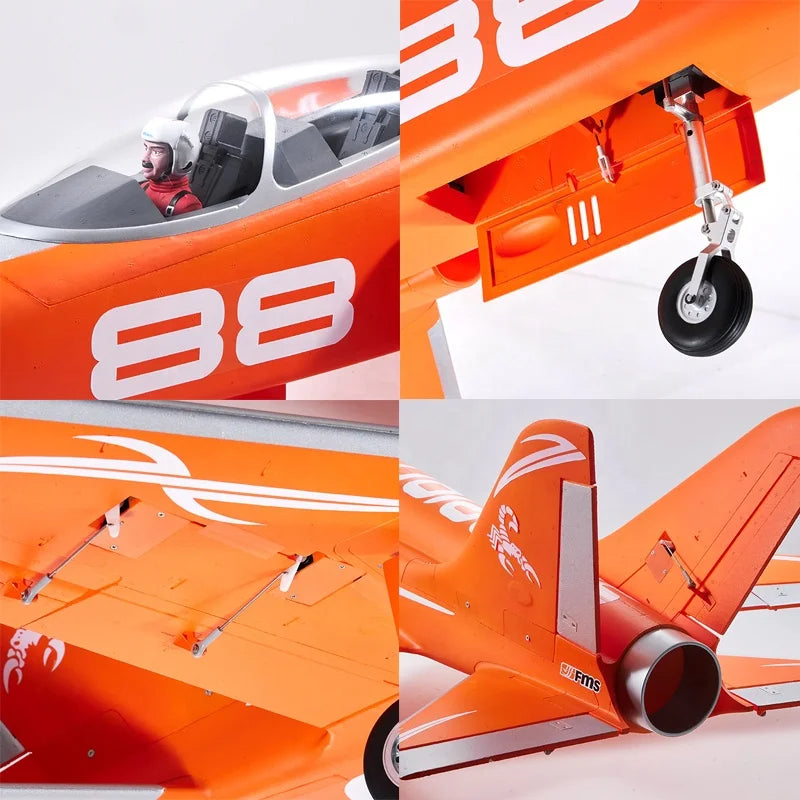

1. New! Improved CNC machined trailing link struts, ensuring smooth suspension and effectively reducing the impact force to the airframe during takeoff, landing, and taxiing.

2. New! Available in both 6S (3670-KV1950 inrunner motor) and 8S (4075-KV1500 inrunner motor) versions.

3. New! Available in two different paint schemes; orange and camouflage!

4. Electric retracts with locked-rotor mode and over-current protection.

5. Multi-plug connectors for added durability, reliability, and ease of assembly.

6. Preinstalled ball link connector for increased throw and precision.

7. Screw-together assembly.

8. High-quality wear-resistant tires.

9. Buckle-design latch prevents unexpected canopy release in flight.

10. Flap functionality to help ease takeoff and landing.

11. Environmentally friendly water-based paint for better color and adhesion.

12. High quality EPO foam.

Needed to Complete

(1) 6 Channel Transmitter and Receiver

(2) 6S (22.2V 5000mAh-6000mAh 45c with EC5 connector) / 8S (29.6V 5000mAh-5500mAh 45c with EC5 connector)

(3) LiPo Battery Charger

Notes to Buyers

① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.

② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.

③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.

④ Reflex V3 is not included and needs to be purchased separately.

⑤ 6-channel receiver is needed for Ailerons, Elevator, Throttle, Rudder, Landing Gear, and Flaps. Upgrade to 7 or more channels for advanced features like Thrust Reverse and Reflex Control.
