FMS149P-REFV3

Dimensions: 111x69 cm

Power: 2840 KV3150 brushless motor

In The Box

(1) 64mm J-10 EDF PNP

(2) 40A ESC with Reverse Thrust Function (installed)

(3) 2840 KV3150 brushless motor (installed)

(4) 64mm 11-blade ducted fan (installed)

(5) 4x 9g Digital Servo (installed)

(6) Product Manual

Needed to Complete

(1) 6 Channel Transmitter and Receiver

(2) 14.8V 2200-2600mAh 25c Li-Po battery with XT60 connector

(3) LiPo Battery Charger

Notes to Buyers

① RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.

② PNP (Plug-and-Play) airplanes include the ESC, motor, and servos all pre-installed from the factory. Transmitter, receiver, battery, and charger are not included.

③ EPO foam and cockpits can bubble or deform in high heat. To prevent this, avoid leaving them in direct sunlight when not in use.

④ The vertical tail and canard need to be secured with EPO glue.

⑤ A T6 Torx screwdriver is needed to install the front landing gear.

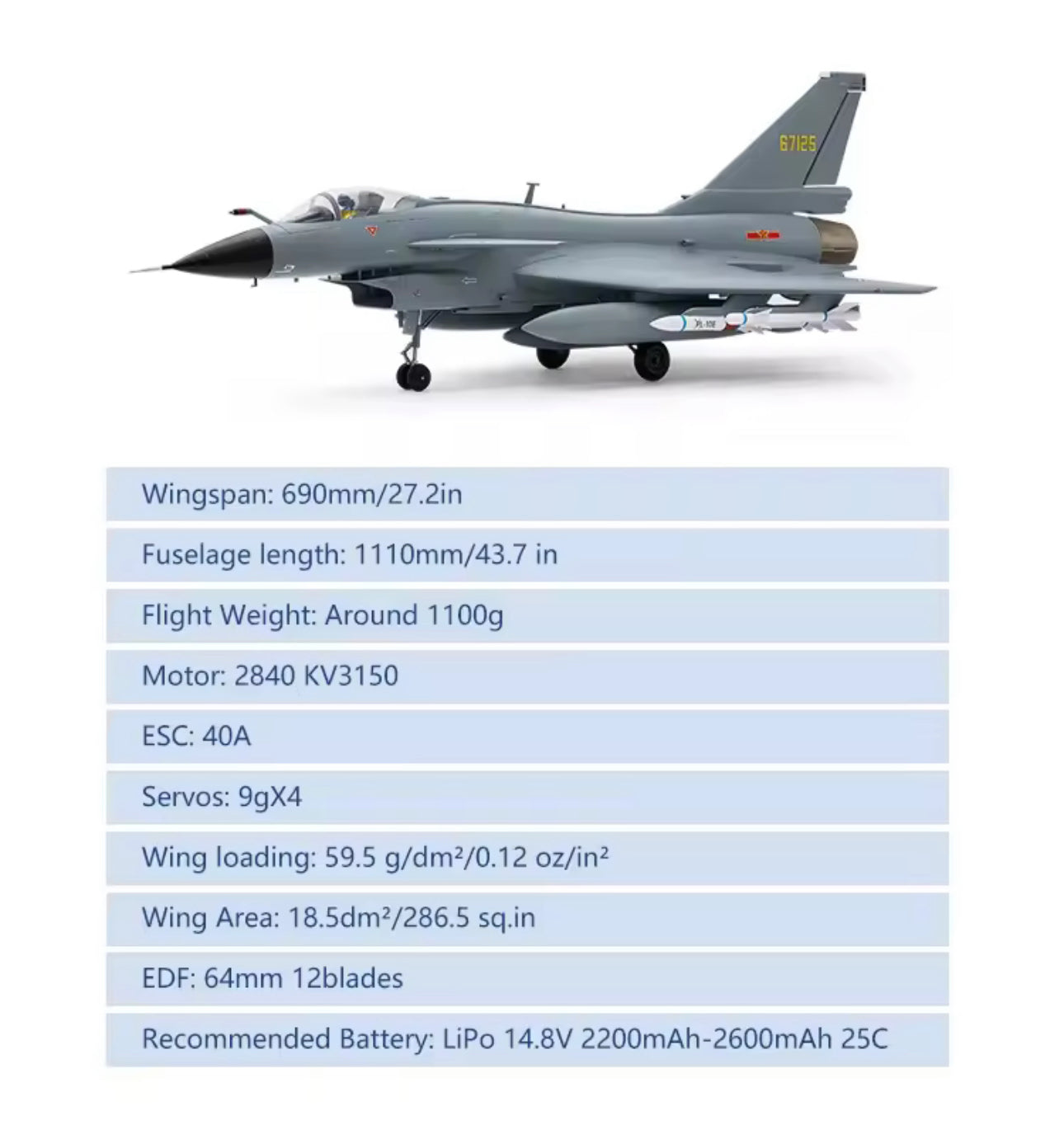

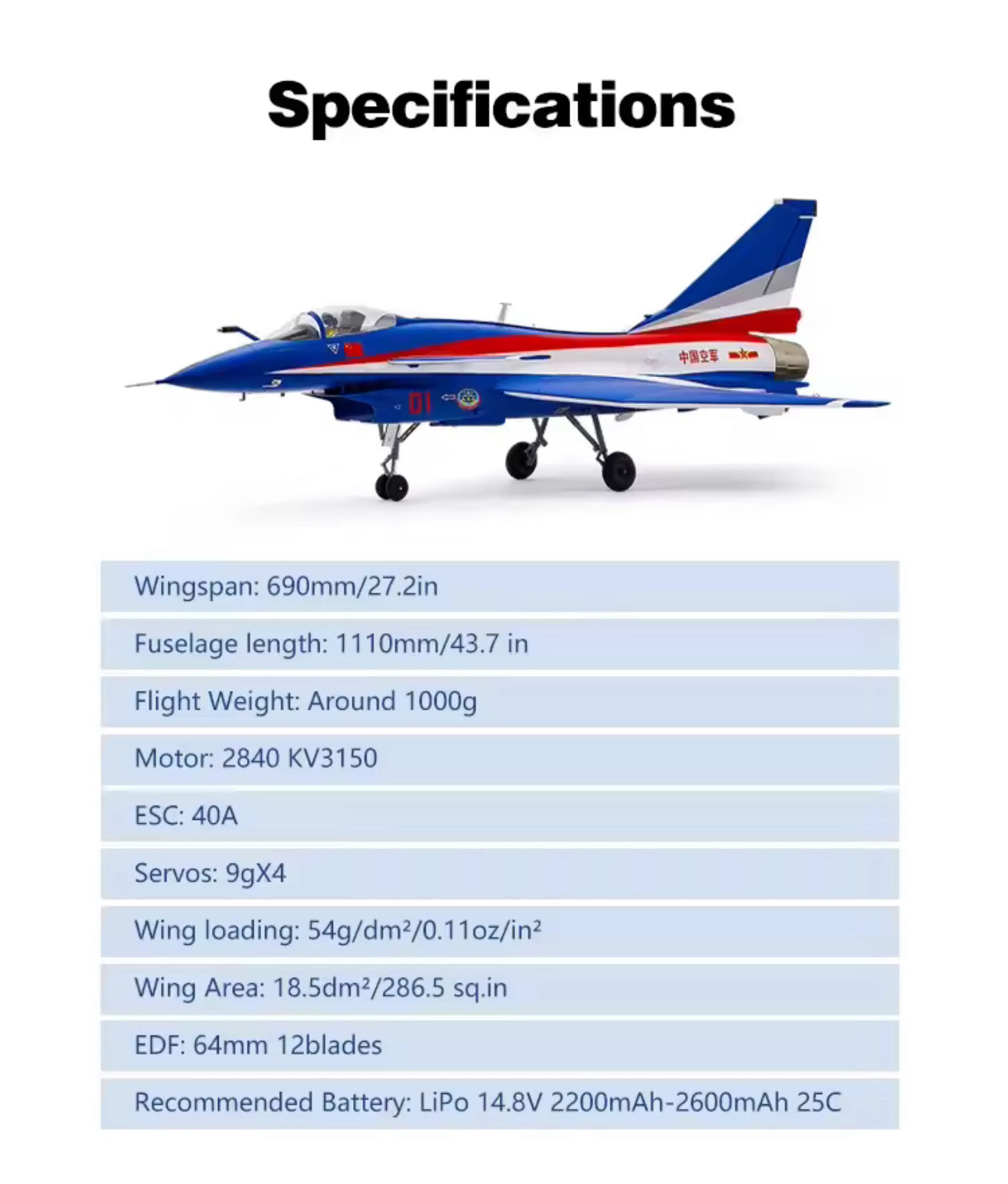

Specification

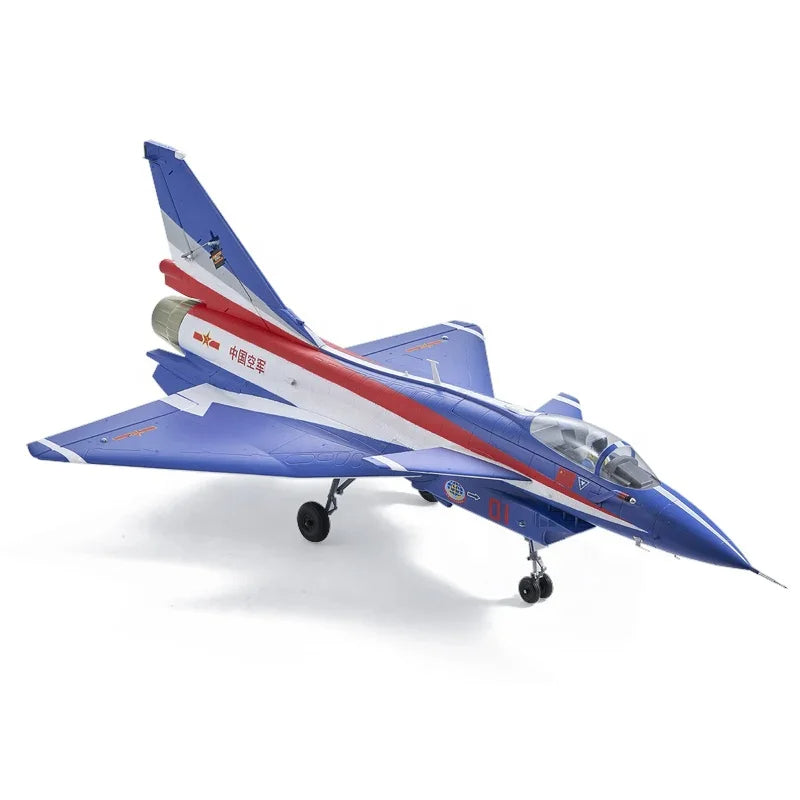

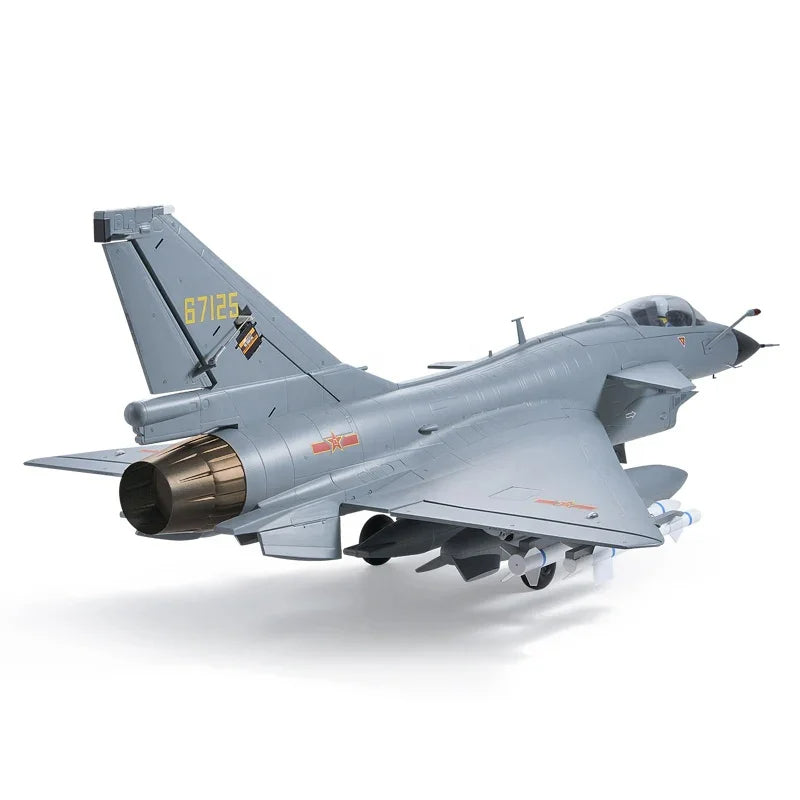

Model: Air Force Gray / August 1st" Aerobatic Team

Flying Weight: Around 1100g / Around 1000g

Wing Load: 59.5g/dm² ( 0.12oz/in²) / 54g/dm² ( 0.11oz/in²)

Wing Area: 18.5dm² (286.5 sq.in)

Wingspan: 690mm /27.2 in

Overall Length: 1110mm /43.7 in

Motor Size: 2840KV3150

ESC: 40A

Servo: 9gX4pcs

Radio: 6CH Channel

CG (center of gravity): 80-90mm

Prop Size: 64mm 12blades

Recommended Battery: 14.8V2200mAh-2600mAh 25c with XT60 connector

Aileron: Yes

Rudder: Yes

Flaps: No

Retracts: No

Approx. Flying Duration: 3 minutes

Minimum Age Recommendation: 14+

Experience Level: Intermediate level

Assembly Time: 10minutes

Features

1.The unique layout of a delta wing with canards provides the aircraft with excellent climb rates and climbing altitudes, allowing for easy execution of low-speed high-angle maneuvers. Additionally, the delta wing, canards, and vertical tail are all reinforced with embedded strengthening ribs, effectively increasing the structural integrity of the aircraft and facilitating high-speed flight.

2.Equipped with a 64mm 11-blade ducted fan with a 2840 KV3150 brushless motor and a high-performance 40A ESC, it is paired with commonly available 4S 2200mAh-2600mAh 25c batteries, effortlessly reproducing the thrilling sound of a fighter jet.

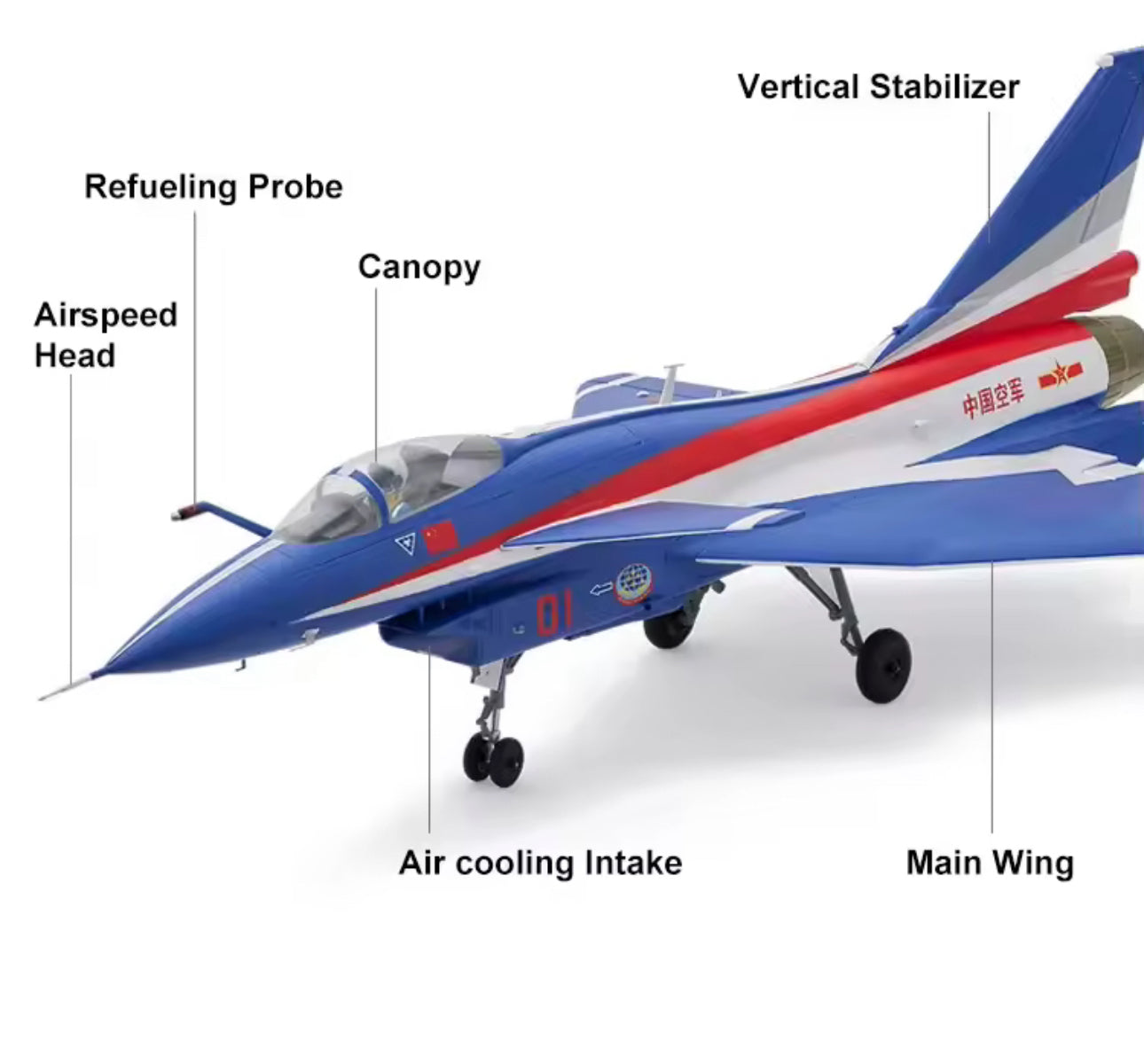

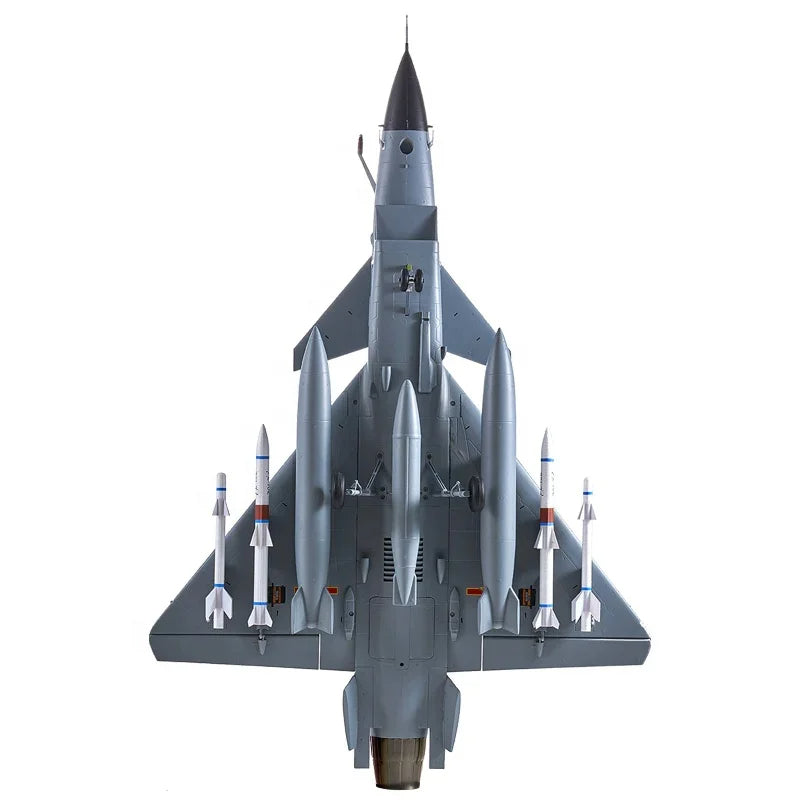

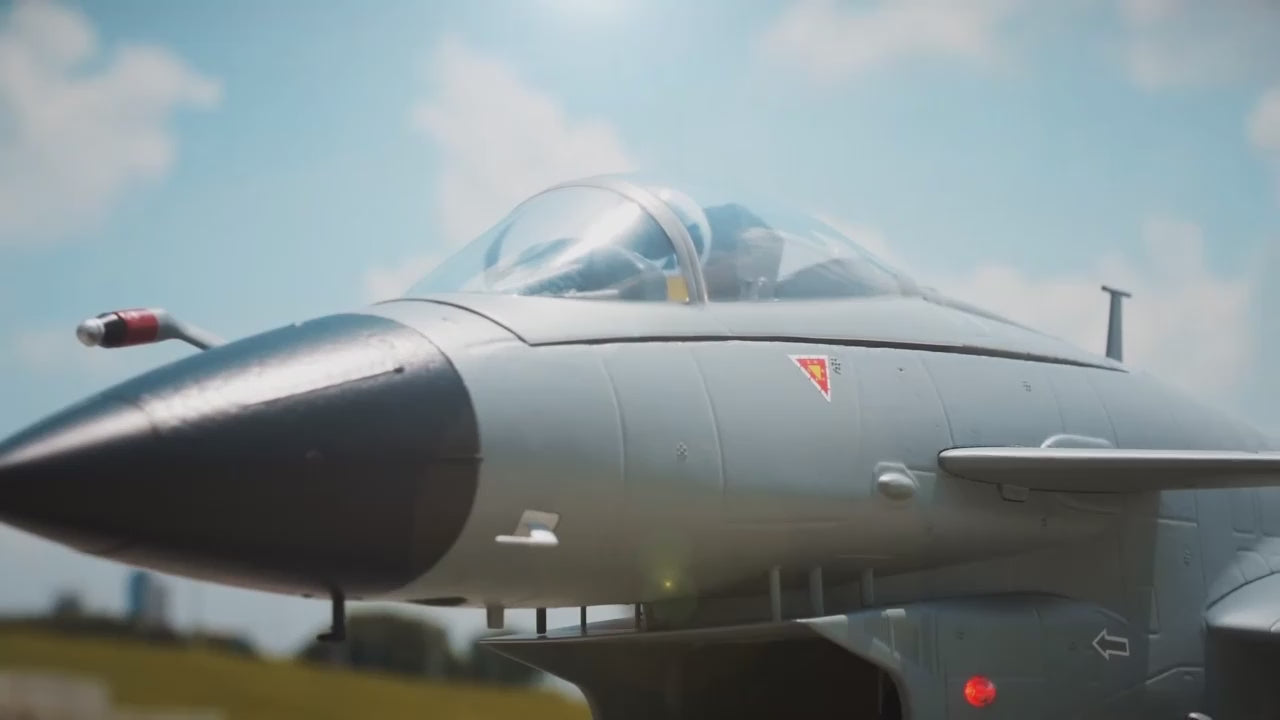

3.High-fidelity details include but are not limited to non-functional scale detachable weapon sets (for air force gray livery only), air refueling probe, cockpit interior, pilot figure, and five high-intensity navigation lights.

4.CNC-machined metal front landing gear with built-in CNC metal shock absorption, externally using realistic plastic parts.

5.EPO 40 foam material with high-impact absorption and rigidity.

6.Simulation water-based paint finish, with a full and tough paint film that is water-resistant, heat-resistant, and has a pleasing gloss finish.

7.Features a simple-assembly structure, experienced players can complete all assembly and pre-flight testing in just thirty minutes.

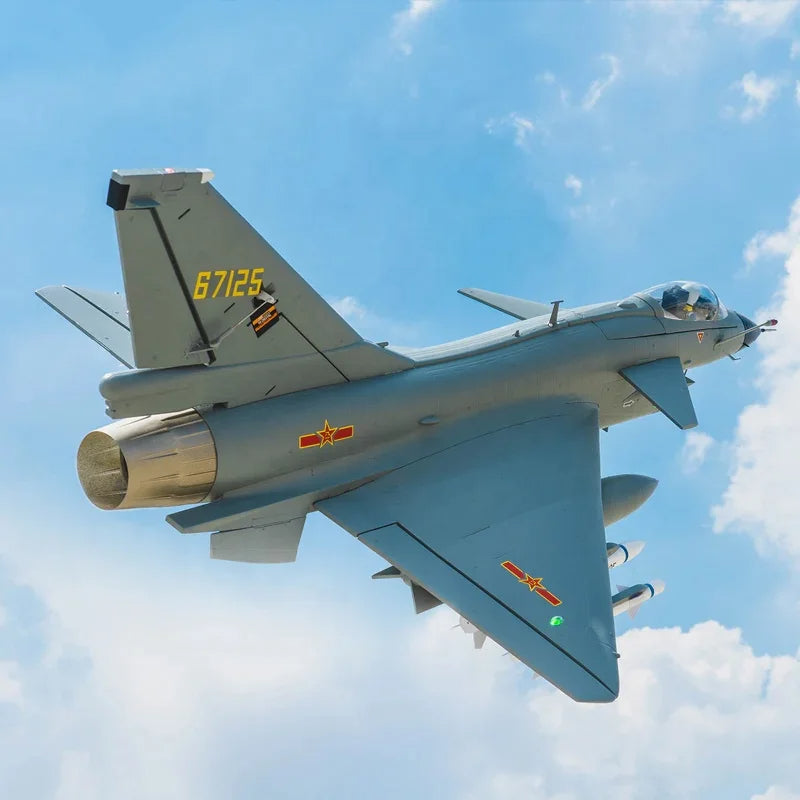

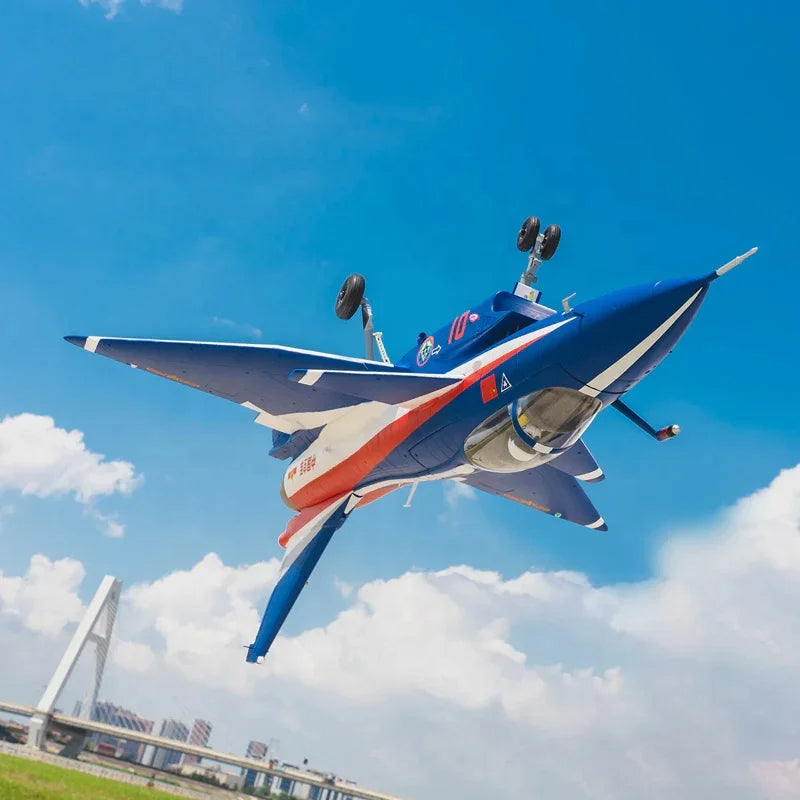

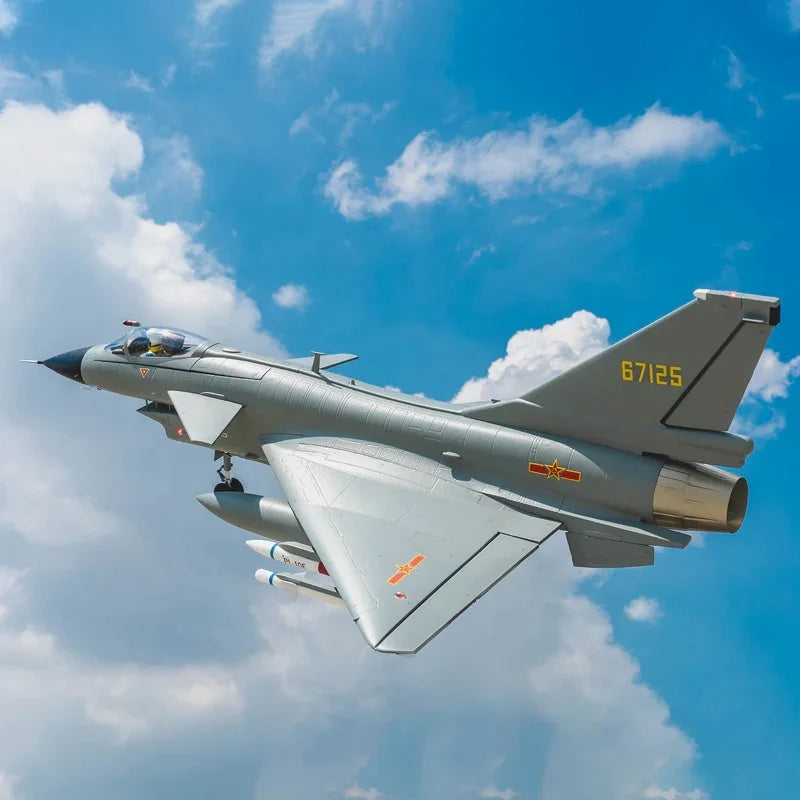

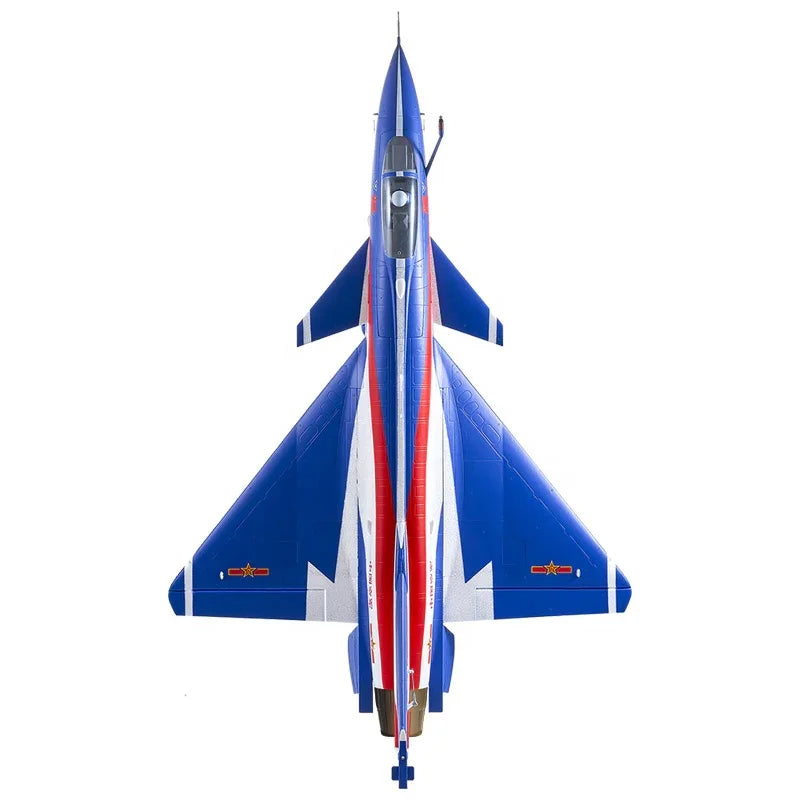

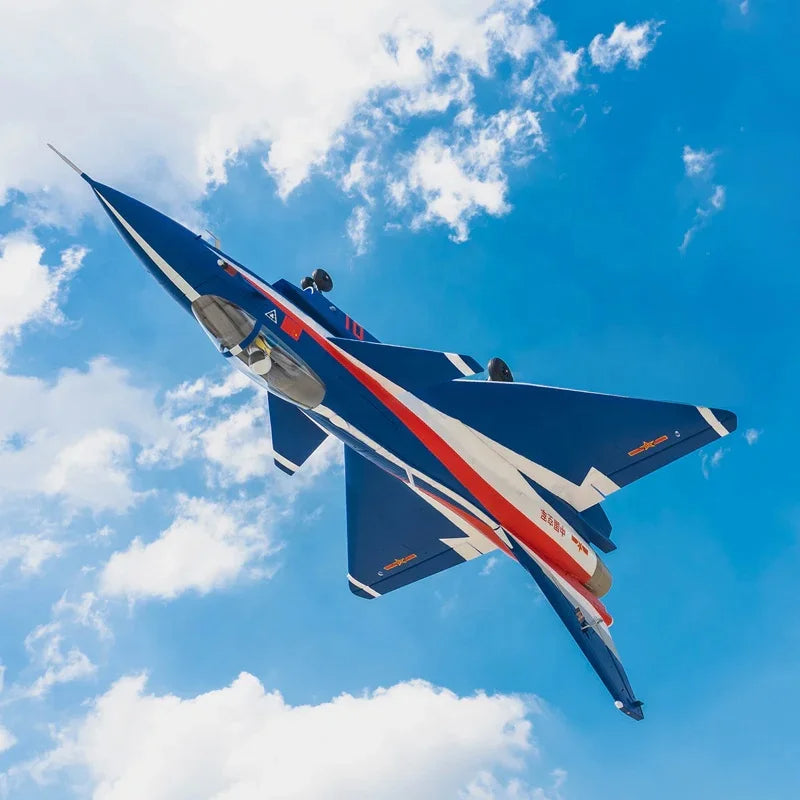

8.Optional paint schemes include the “August 1st” Aerobatic Team paint and the Air Force gray paint.
