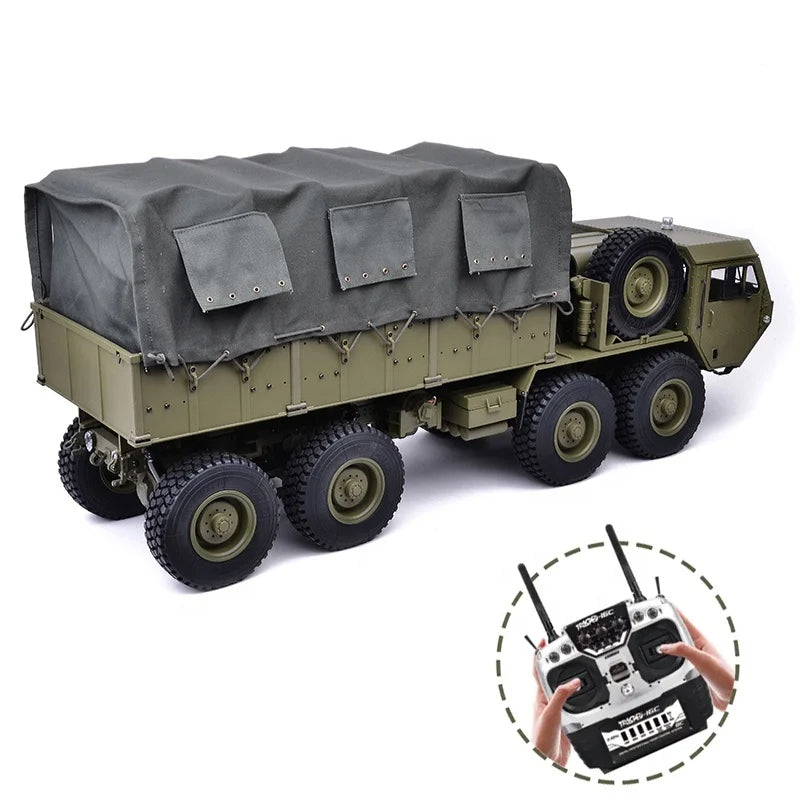

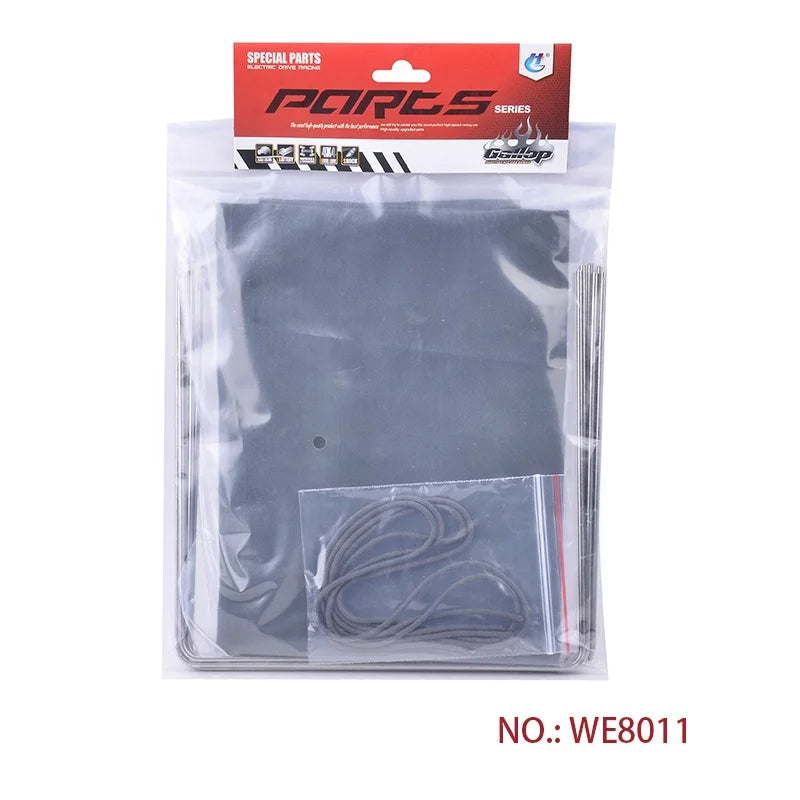

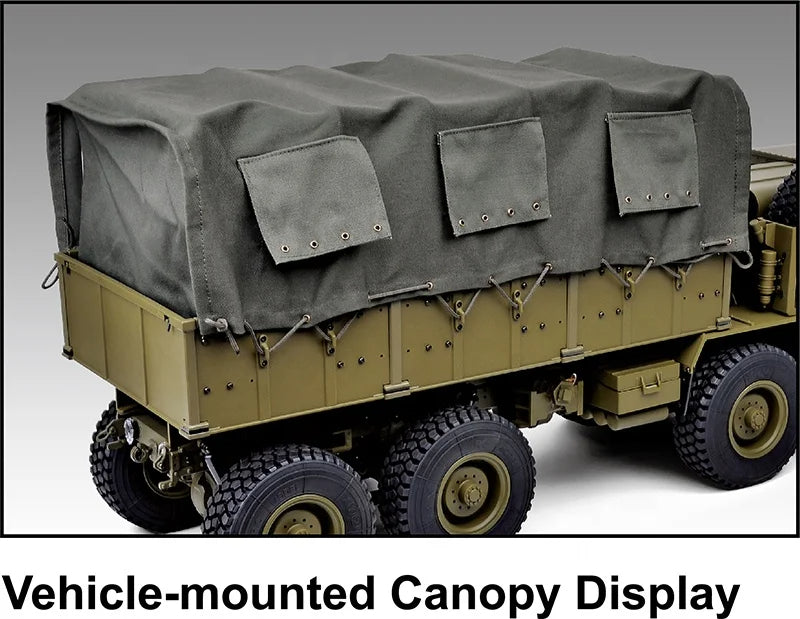

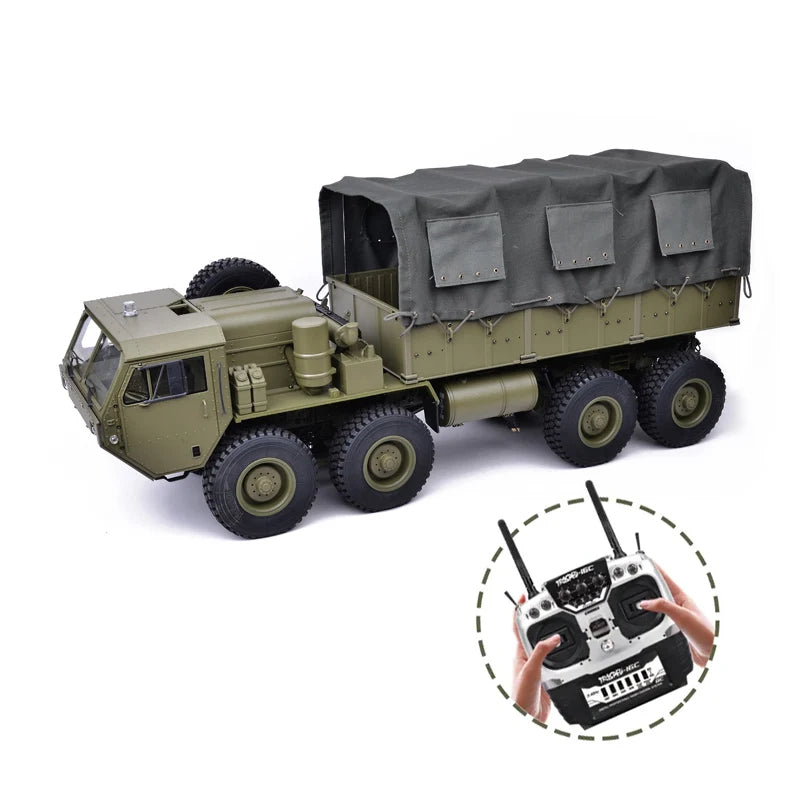

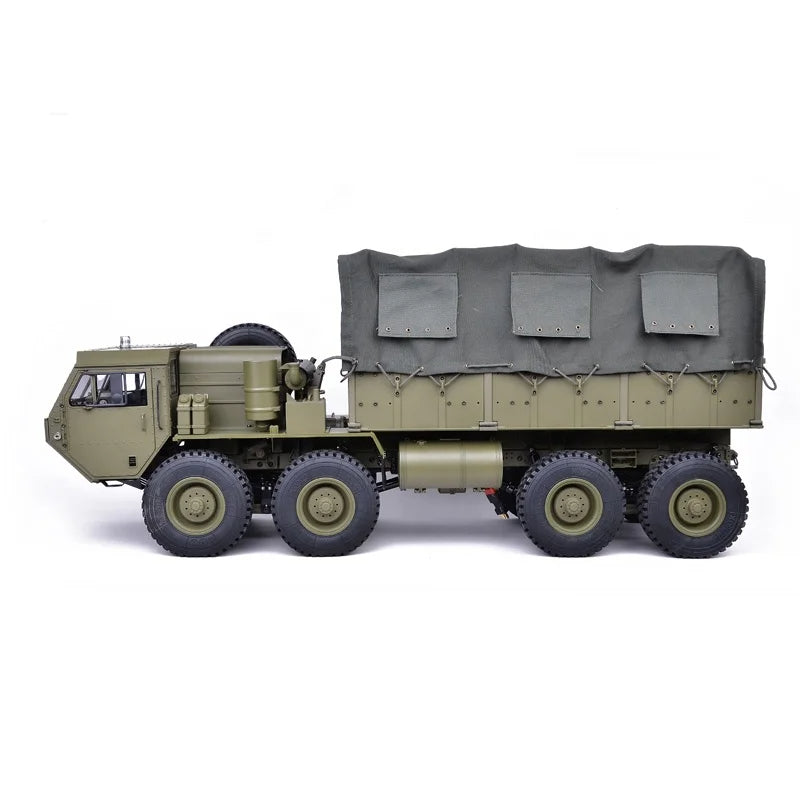

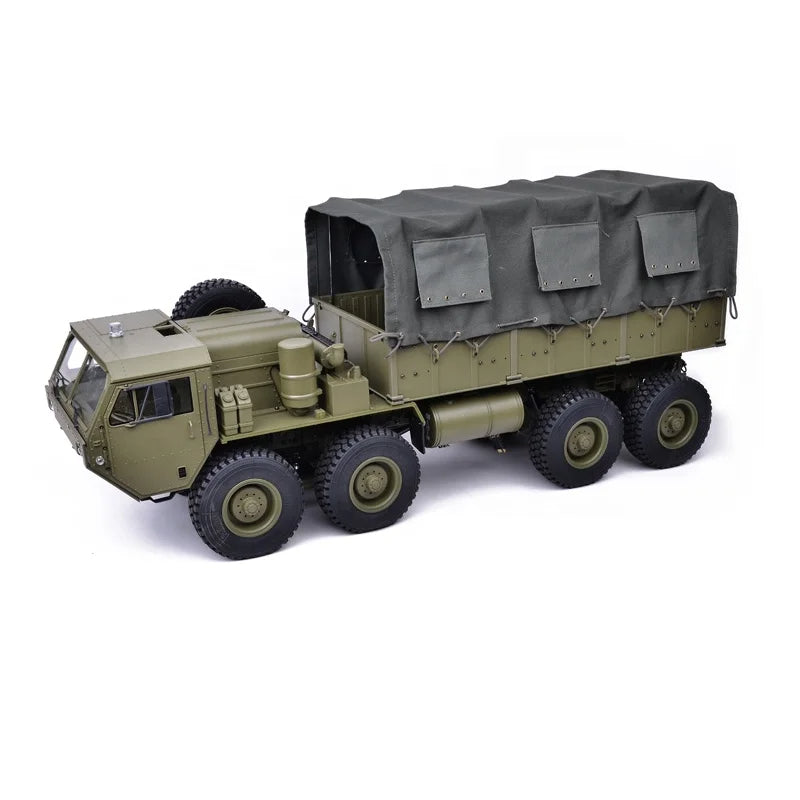

HG P801 PRO WE8011 Canopy HEMTT 8X8

Color: Army Green

low speed: 12km/h

High speed: 18km/h

Power System

ESC: 320A ESC

Motor: 550 brushed motor

Servo: 2 copper gear 9KG digital servo(high power steering)

Transmitter Frequency: 2.4G

Channel: 8CH

Remote distance: 100m

Transmitter Battery: 6X AA(NOT INCLUDED)

Car Battery recommended: 7.4V 3000mAh (NOT INCLUDED)

Material: hardware zinc

1. Maximum climbing angle: 35° in low rate; 15° in high rate

2. Maximum wading depth: 55mm

3. The maximum load capacity of the cargo hopper: 10KG

4. Minimum turning radius: about 1 meter

5. Maximum ditch width: 180mm

6. The maximum turning angle of the dump bucket: 40°

7. Telescopic rod stroke: 88mm

8. Telescopic speed (RLM/cm): 13

9. Rated jacking force (KG/cm): 5.0

10. Stalled-rotor jacking force (KG/cm): 7.0

Central transmission secondary mechanical gear position is adjustable (upgradable remote adjustment)

The chassis of the vehicle is made of zinc alloy.

The front and rear axles adopt a conical gear to straight tooth high-load reduction transmission structure.

Spring steel plate shock absorber + telescopic double shock absorption

Variable stroke ball type universal joint shaft

Front and rear independent link type bridge system

Eight rounds full-time drive, ample traction can pull all kinds of equipment

The steering gear control disc can be freely disassembled

1/12 full scale rc car model s-idee

The first four wheels adopt the wire rope-pulling structure to realize the four-wheel synchronous steering.

Package Included:

Canopy*1

Manual *1

Sticker *1

1.5mm hexagon socket screwdriver *1

2.0mm Allen key *1

2.5mm Allen key *1

Cross wrench (small) *1

Cross beam bolt *2

Small wrench *1Manual *1

1.5mm hexagon socket screwdriver *1

2.0mm Allen key *1

2.5mm Allen key *1

Cross wrench (small) *1

Cross beam bolt *2

Small wrench *1

M4 flange nylon locknut *2

M4*4 drill screw *2

HM2*6mm screw *60

HM2*10mm screw *2

TM2*6mm screw *12

Nylon cable tie 3*200mm *4

Body side panel hook *12

Canopy frame limit piece *24

Towing hook at both ends *4

M2 nut *4

Mudguard (L) *2

Mudguard (R) *2

Reflector (L) *1

Reflector (R) *1

M4 flange nylon locknut *2

M4*4 drill screw *2

HM2*6mm screw *60

HM2*10mm screw *2

TM2*6mm screw *12

Nylon cable tie 3*200mm *4

Body side panel hook *12

Canopy frame limit piece *24

Towing hook at both ends *4

M2 nut *4

Mudguard (L) *2

Mudguard (R) *2

Reflector (L) *1

Reflector (R) *1
