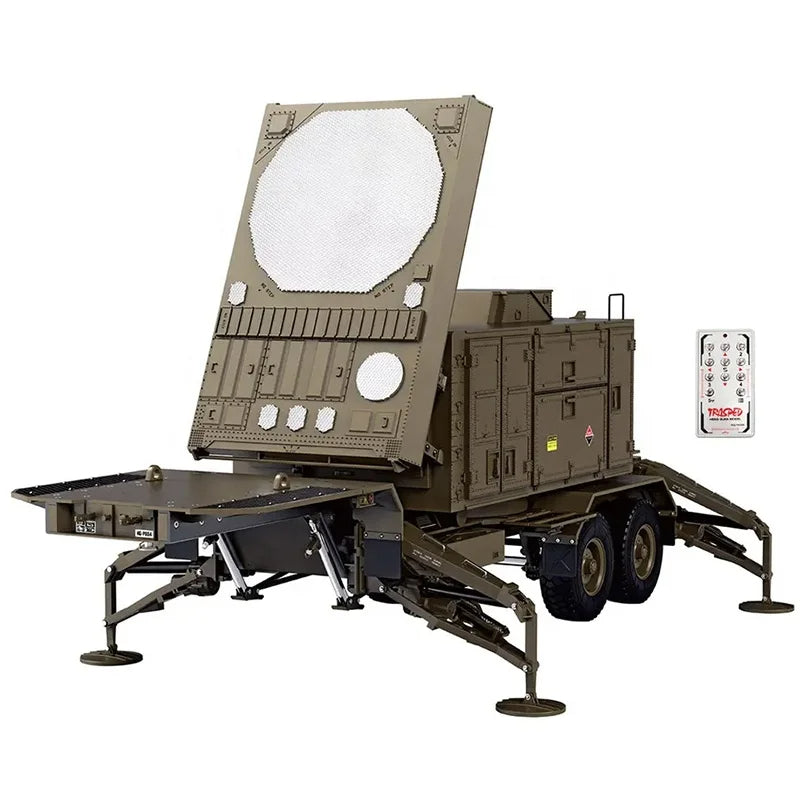

MILITARY RADAR TRAILER HG P804

HG P804 Hobby Model Toys 1/12 2.4G KIT Parts for HG-P802 Car Radio Control Army Truck RC Military Tractor Radar Trailer Vehicle

Specifications & Features

Product size:

Collect: Length 917mm * Width 324.5mm * Height 343.5mm

Extension: length 917mm * width 493.5mm * height 518mm

Packing size: 71.2x45x31.5CM

CTN size: 74*47*34CM

G.W/N.W: 12/9.2 KG

Regulated current: Maximum current output 6A

Transmit power: Small remote control 2db 8-channel square control 16db

Lifting angle of radar board: 60 Degree

Lifting angle of support frame: 91 Degree

Motor: 370 high-power steering gear motor

N20 telescopic rod high speed drive motor

Main control board: HG317 with lighting effects and anti-jamming protection

1. Load-bearing trailer body, heavy alloy chassis for the entire vehicle

2. Double shock absorbers + leaf spring non-independent suspension system

3. Independent remote control operation and remote control of the tractor

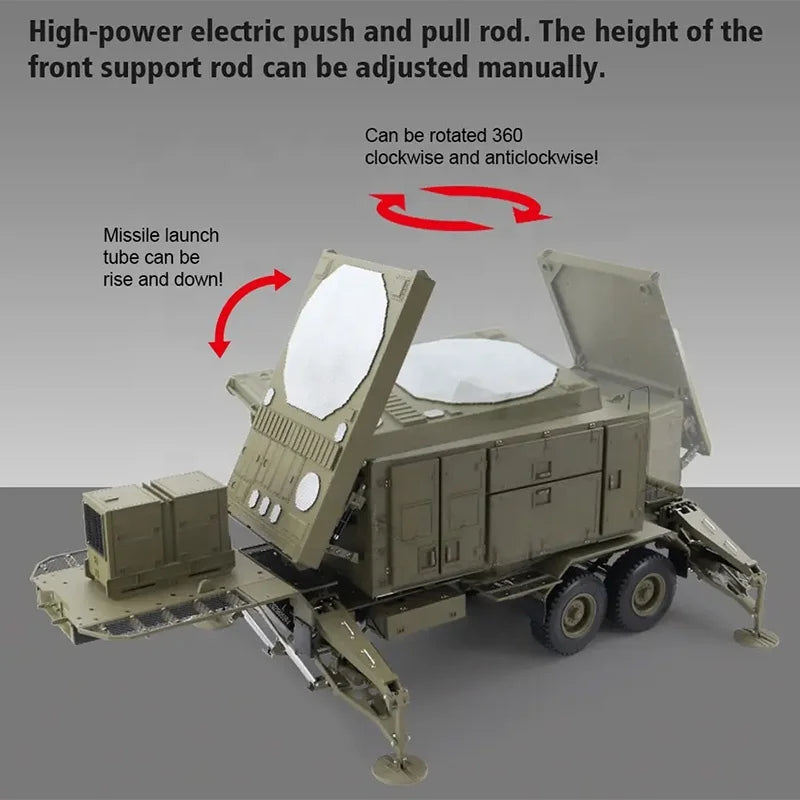

4. High-power electric push-pull rod, which can lift the entire body off the ground

5. The main body of the radar can continuously rotate 360° forwards and backwards.

6. Compatible with the same proportion of drag mill

7. 1/12 high simulation remote control model series

8. 4 trailer stabilizers to support the entire body

9. The main door can be opened.

10. The front support rod can be manually adjusted in height

11. The 4 support columns can be operated synchronously or independently.

12. The whole vehicle is packaged in spare parts and assembled by the user to experience the fun of DIY

13. The radar board can rise and fall at will.

14. Multifunctional voltage stabilizing control circuit

Maximum climbing angle: 15°/slope length 2M

Maximum turning radius: 2M

Maximum push-pull force of the telescopic rod: 300N/30KG

Maximum span width: 100MM

Ground clearance of chassis: 85MM

Tire can be suspended distance: 5MM

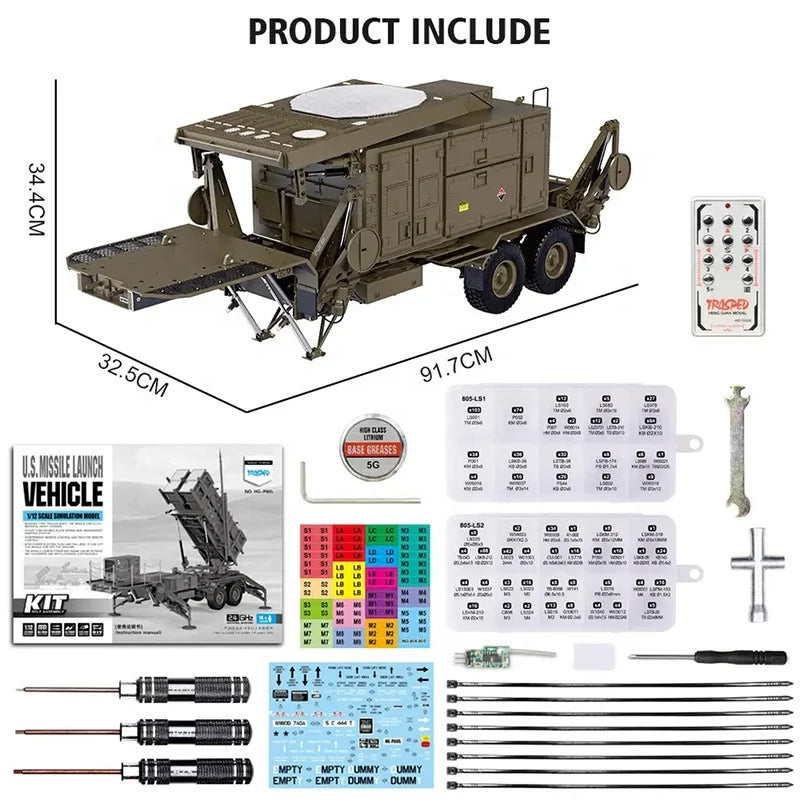

Package Included:

Assembly instruction*1

UV pressure sensitive label*1

Wire label sticker*1

Parts box-1*1

Parts box-2*1

1.5mm hexagon socket screwdriver*1

2.0mm hexagon socket screwdriver*1

2.5mm hexagon socket screwdriver*1

Cross wrench (small)*1

Small wrench*1

Small Phillips screwdriver*1

Small remote*1

Small receiver*1

Sponge double-sided stickers*1

Nylon cable tie 3*150mm (black)*8

Other DIY parts
