P802 SEMI TRAILER

HG P806 DIY TRASPED HG-P806 1:12 US M747 6X6 Flatbed Vehicle Kit Alloy Metal Part Diecast Truck Semi Trailer for P802 RC Tractor

Specifications & Features

Note:

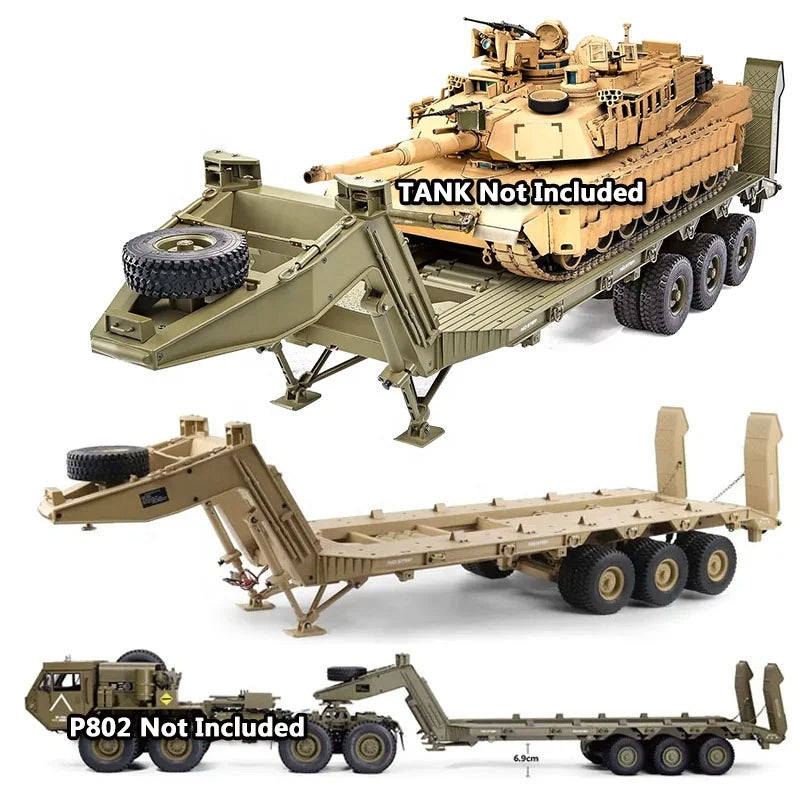

1. The package doesn't include the R/C Truck and Tank.

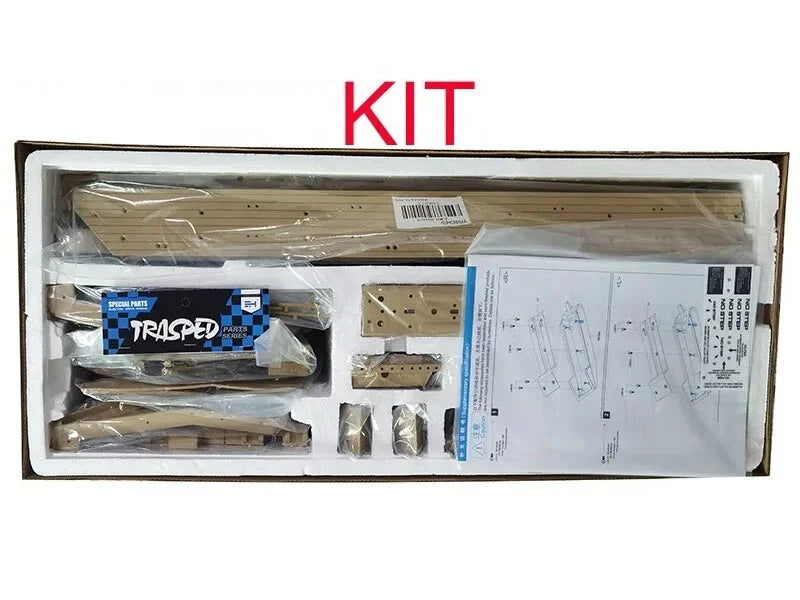

2. It is the KIT version; you must assemble it yourself.

1. Max Climbing Angle: 15°/ 2 meters long slope

2. Max Turning Radius: 2 meters

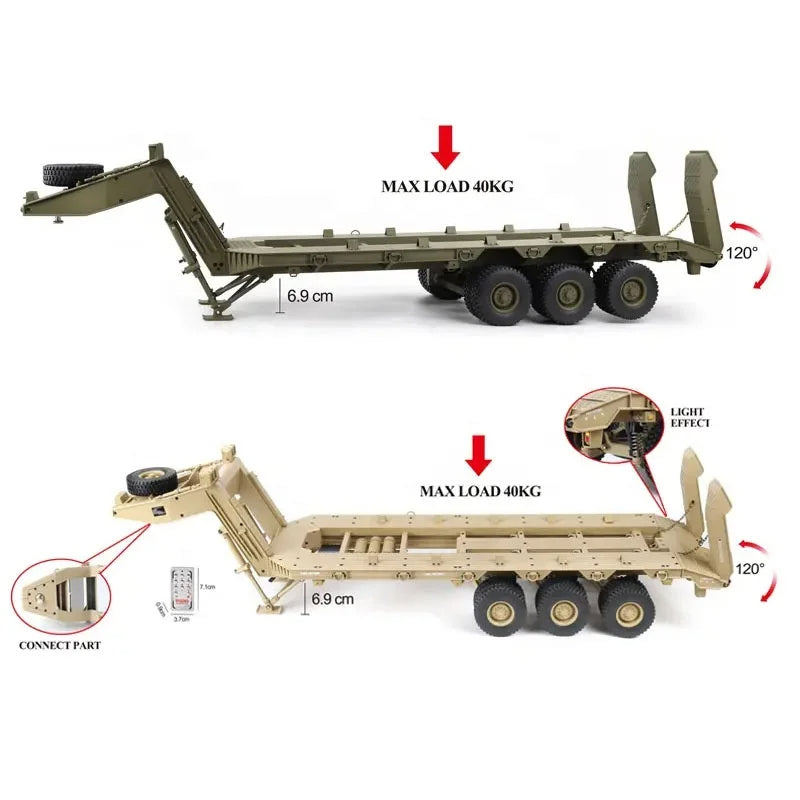

3. Max Load: 40KG

4. Raising Angle of Tail Plate: 120°

5. Max Span Width: 180mm

6. Protection Function: When the tailboard is blocked when rising or falling, it will automatically stop to prevent the tailboard from being damaged due to excessive force.

7. Total length: 1172mm (the tail plate is lowered) and 1038mm (the tail plate is raised)

1. This product belongs to the low panel semi-trailer category; the beam adopts the same ladder frame structure as the actual car, chooses high-quality alloy material, and the net weight of the whole vehicle reaches 10.5KG, solid and reliable. The rated load of the semi-trailer loading zone is 40 kg, mainly used to transport large construction machinery, sizeable military equipment, tanks, and other large model vehicles.

2. The front part of the semi-trailer is equipped with an all-metal semi-automatic retractable front foot support, simple and reliable operation, and more incredible mechanical sense and practical simulation combined. In addition, HG-P806 adopts the "double line and three axes" active balanced steel suspension structure; the front and rear axles of the suspension are stressed equally, and the left and right do not interfere with each other.

3. The semi-trailer of HG-P806 is equipped with an automatic elevator ladder and double pass-through load protection electric control module, with dual flashing lights, which can be directly taken by the receiver and independently controlled by the remote controller or manually realized by the button switch at the front of the semi-trailer.HG-P806 belongs to the whole box of bulk configuration, which has been finished at the factory. Therefore, players can DIY all the appearance parts and the assembly of the activity mechanism by themselves, and they can add personalized paintings according to their preference.

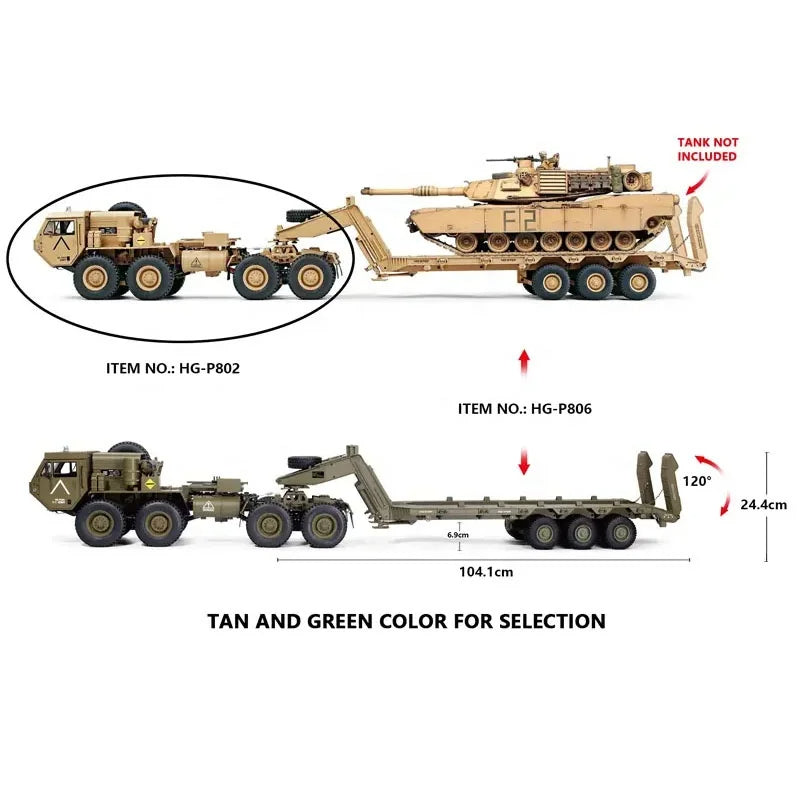

4. The drag and drop join the structure of the semi-trailer is mainly made to suit the HENGGUAN MODEL HG-P802 military towing grinder, also compatible with the same proportion of tractor trucks on the market and can be controlled by changing the tractor truck at will.

Package Included:

1X RC Trailer Kit

1X Remote Controller

1X Manual

1X Sticker

1X 1.5mm Allen Screwdriver

1X 2.0mm Allen Wrench

1X 2.5mm Allen Wrench

1X Cross Wrench (Small)

1X Small Wrench

1X Nylon Cable Tie 3*150mm (Black)
